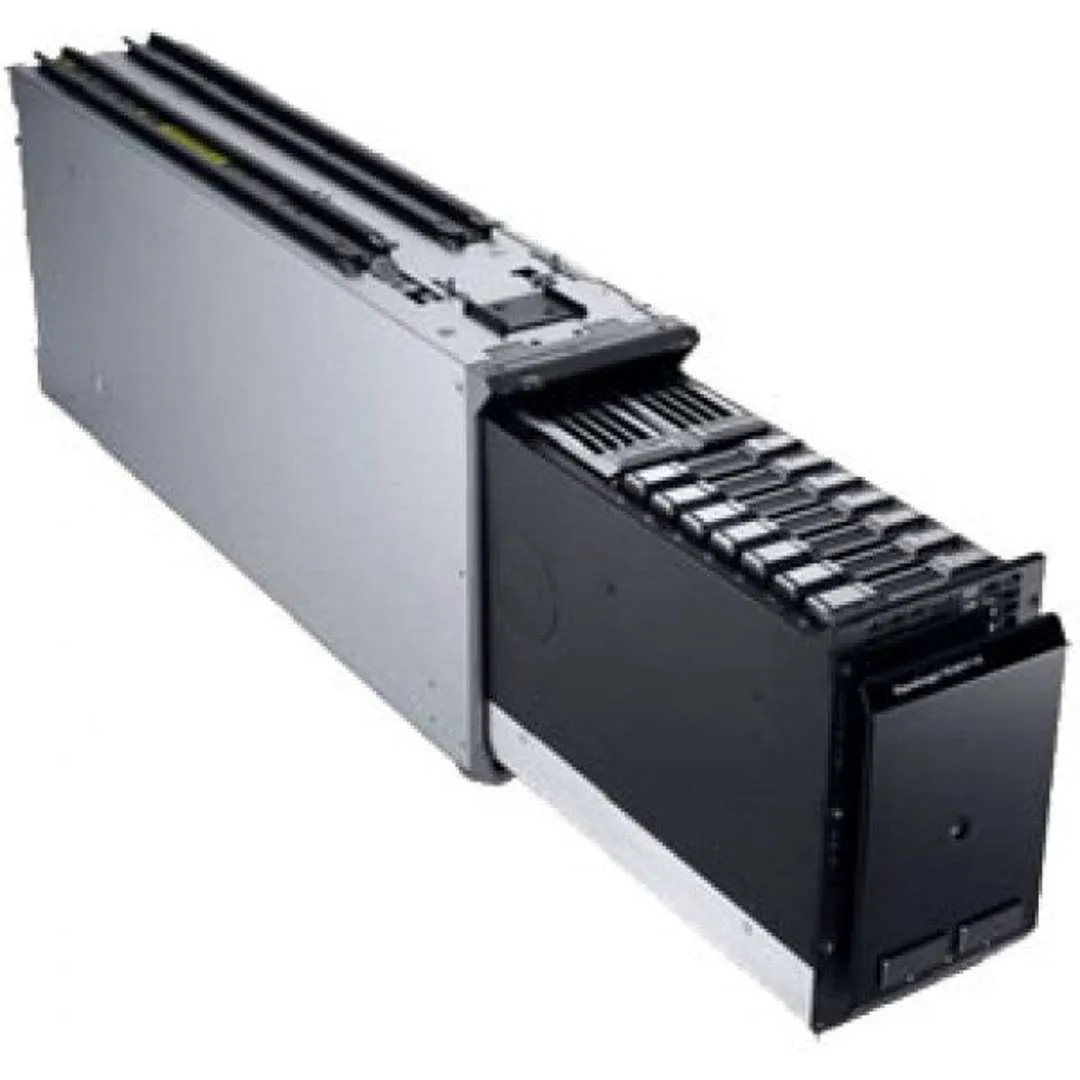

The Dell EqualLogic PS-M4110 Series Blade Array continues to drive innovation by delivering all the functionality and enterprise-class features in the small blade form factor. The PS-M4110 Series array enables a fully virtualized solution integrating storage, servers and networking within one blade chassis.
The PS-M4110 Series blades are flexible and seamless for scaling as well as giving you a comprehensive enterprise-class solution designed with EqualLogic’s unique peer-scaling architecture that scales both performance and capacity simultaneously. As the demand for storage grows, you can easily scale both inside and outside of the PowerEdge M1000e blade chassis.
PS-M4110XV ISCSI SAN TECHNICAL FEATURES
| PS-M4110 SERIES FEATURES | PS-M4110XV ISCSI SAN TECHNICAL FEATURES |
|---|---|
| Product Configurations | Enterprise storage in a half-height blade form factor |
| Storage Controllers | 1 or 2 hot-swappable controller option available. Each with 2GB of usable memory (4GB of total memory) per controller and cache to flash for data protection |
| Network Interfaces | 2x 10GbE connectivity with one dedicated management port accessible through Chassis Management Controller (CMC) |
| Hard Disk Drives | 14x Hot-Pluggable 2.5" 7.2K NL-SAS Drives |
| Drive Capacities | 146GB or 300GB 15K SAS |
| System Capacities | Up to 4.2TB |
| Host Protocol | Any standards-compliant iSCSI initiator |
| OS and Hypervisors Supported | Microsoft Windows Server 2003 R2 with SP2, Windows Server 2008 SP2, Windows Server 2008 R2, Microsoft Windows 8, Windows 2012, VMware vSphere 4.1, 5.0, 5.1, Citrix XenServer 6.0, Red Hat Enterprise Linux 5.7, 6.1, SUSE Linux Enterprise Server 10 SP4, 11 SP2, CentOS 5.6, Sun Solaris, IBM AIX, HP-UX, Mac OS X, Novell NetWare |
| RAID Supported | RAID 5 (not recommended), RAID 6, RAID 10, RAID 50 |
| TCP Network Support | IPv4, IPv6 Core Support |
| Expansion Option | Can be combined with other EqualLogic PS Series arrays in the same SAN group online. A maximum of two (2) PS-M4110 Blade Arrays can be in a group, up to four (4) blade arrays per blade chassis. Additionally, the PS-M4110 can scale outside blade chassis to rack-mounted EqualLogic arrays for up to sixteen (16) in a SAN group |
| Unified Storage Options | Adding an EqualLogic FS7600 or FS7610 NAS appliance to an EqualLogic group enables both block and file storage from a single storage solution |
| Reliability | Redundant Hot-Swappable controllers and Hot-Swappable disks. Redundant network path with internal fabric wiring in M1000e chassis. Redundant fans and power supplies provided by M1000e chassis. |
| Management Interfaces | Dell Chassis Management Console (CMC) integration. EqualLogic Group Manager. EqualLogic SAN Headquarters multi-group performance and event monitoring tool. Serial Console. Ability to configure a separate management network. SNMP, Telnet, SSH, HTTP, Web (SSL), Host Scripting. Multi-administrator support. |
| Security | CHAP Authentication; Access control for iSCSI; Access control for management interfaces including RADIUS support; IPSEC and SED |
| Notification Methods | SNMP traps, e-mail, syslog |
| Physical | Half-height, double-wide storage blade. Height: 7.44". Width: 4.015". Depth: 20.275". Weight: 27.82 lbs. |
| Power | 450W; Voltage: 12VDC; Max Power Input: 450W; Input Current: 37.5A |
| Typical Power | 293.3W |
| Blade Enclosure | PowerEdge M1000e |
| Blade I/O Modules | Dell Force10 MXL, PowerConnect M8024-K, 8428-K and 10Gb-K Ethernet pass-through modules with external switches |
| Power Supplies and Fans | Supplied by Dell PowerEdge M1000e Blade Enclosure |
